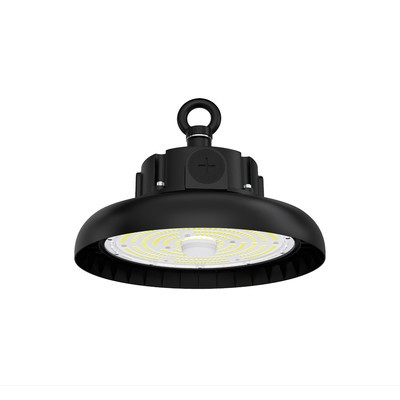

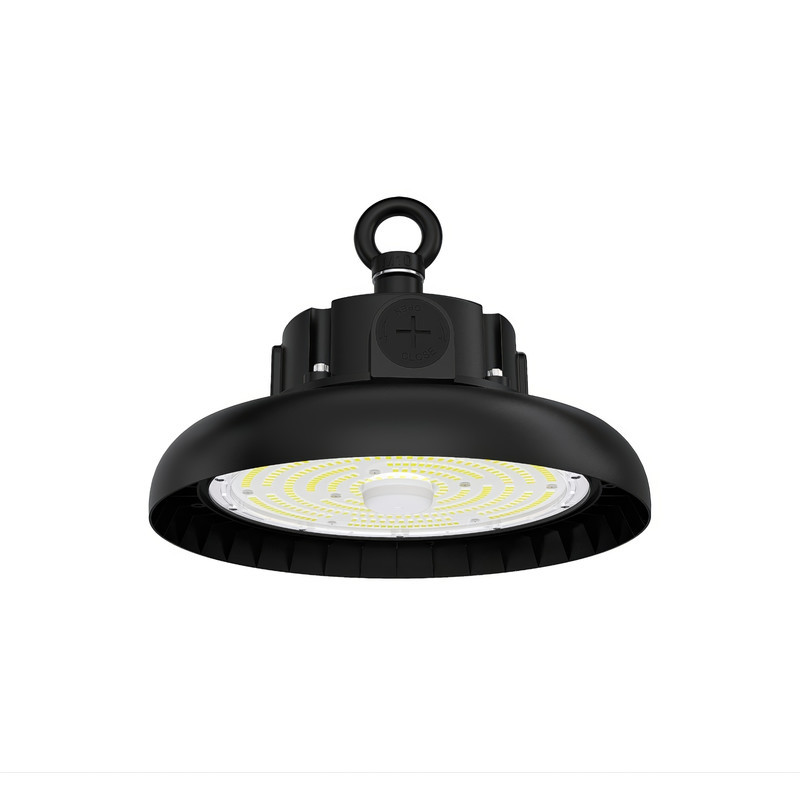

UFO LED High Bay Extreme X1 150W | 210 lm/W

LED high-bay light Extreme X1 150W 210 lm/W 90° Xitanium NT

Description

UFO LED High Bay Extreme X1 – 150 W | 210 lm/W | 31,500 lm | Selectable Colour Temperature

UFO High Bay Extreme X1 at 150 W – ideal for mounting heights of 8–12 m. Available in 4000 K, 5000 K and 6000 K.

210 lm/W

Efficiency

31,500 lm

Luminous Flux

150 W

Wattage

50,000 h

Lifespan

IP65

Protection

4000–6000 K

Selectable Colour Temp.

Powerful and flexible: the Extreme X1 150 W delivers 31,500 lumens at just 150 watts – 210 lm/W at system level. Designed for mounting heights of 8 to 12 m, it illuminates even large hall areas uniformly. Three selectable output levels (90/120/150 W) via code switch and the proven Philips Xitanium driver make it the first choice for professional hall operation. The colour temperature is freely selectable: 4000 K (Neutral White), 5000 K (Daylight White) or 6000 K (Cool White) – please select when ordering.

Brand Quality

Philips Xitanium LED Driver – Why the Driver Determines Luminaire Lifespan

In practice, the LED driver is the component most responsible for premature luminaire failure – not the LEDs themselves. The Philips Xitanium addresses this: with efficiency ≥94%, power factor ≥0.95 and full IP65 encapsulation, this driver is engineered for years of continuous operation in dusty, humid and high-vibration environments. The result: lower maintenance costs and maximum uptime for your lighting installation.

Power Factor ≥ 0.95 Efficiency ≥ 94% 0–10 V Dimming IP65 Encapsulated 4x Protection Built-in

Output Control

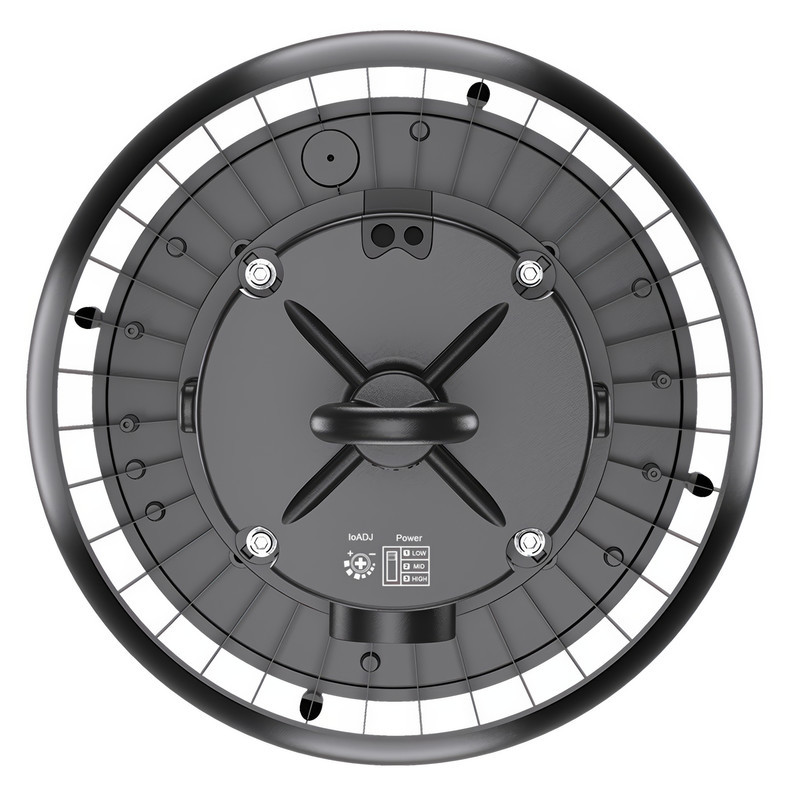

Flexible Output Adjustment Without External Controls

The 150 W model offers the widest mid-range flexibility with its three levels of 90 W, 120 W and 150 W – ideal for switching between energy-saving mode and full output depending on time of day or occupancy, without requiring a separate dimming system.

Model	Default	? LOW	? MID	? HIGH
150 W Model	150 W	90 W	120 W	150 W

Your Benefits

Built for Industrial Use

lm/W

Peak Efficiency – 210 lm/W at System Level

The Extreme X1 150 W delivers 31,500 lumens at just 150 watts. That means halls with ceiling heights of 8–12 m can be illuminated at a fraction of previous operating costs.

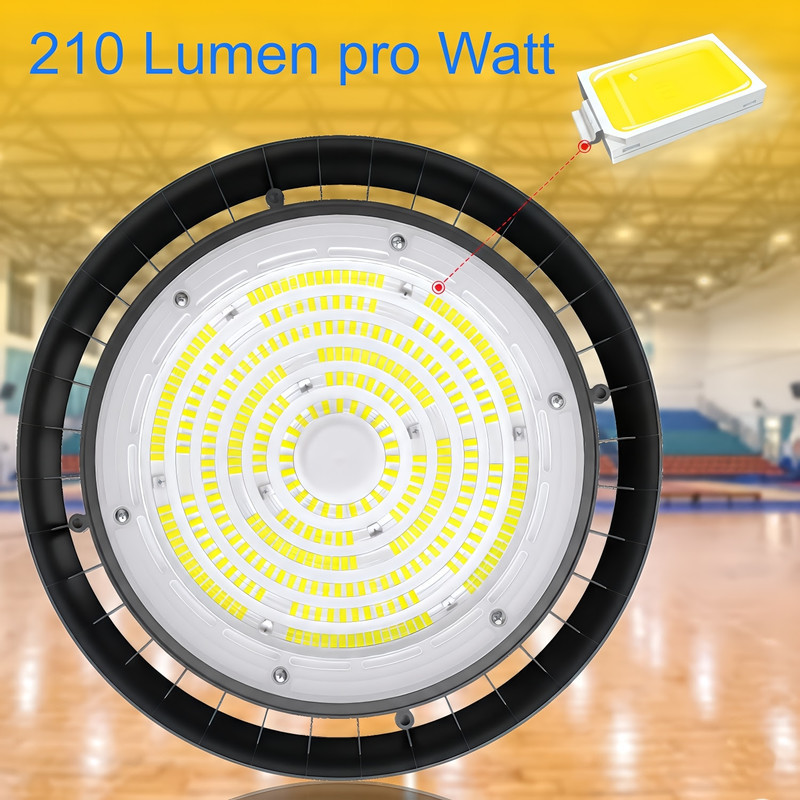

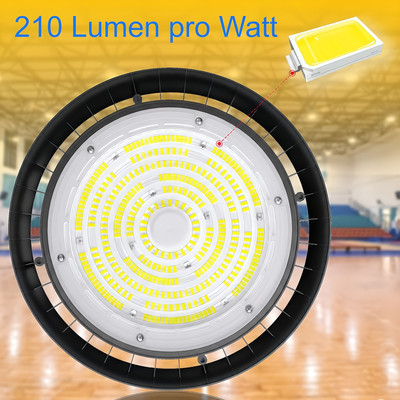

SMD 2835 High-Efficiency LEDs

IP65

Industry-Tested – IP65 & IK09 Protection

IP65 protection against dust and water jets, IK09 impact resistance – the Extreme X1 150 W is engineered for deployment in high-bay racking, production halls and workshops subject to mechanical stress.

DIM

0–10 V Dimming

The Philips Xitanium driver supports 0–10 V dimming: brightness continuously adjustable via control wire – compatible with DALI gateways, motion detectors and daylight sensors.

50Th

Maintenance-Free Long-Term Operation

Rated lifespan of 50,000 hours: in a 16-hour shift operation, the Extreme X1 150 W runs for over 8 years without lamp replacement – predictable operating costs from day one.

CRI

Good Colour Rendering for Safe Working Environments

CRI ≥ 70 ensures that colour markings, warning signs and material differences are reliably identified even under artificial light – a key factor for workplace safety in production and storage environments.

90°

Precise 90° Downlight Effect

At mounting heights of 8–12 m, the 90° beam angle delivers standard-compliant illuminance on the floor without scattering light into the surroundings – efficient and glare-reduced.

Optional: PC reflector available

Specifications

Technical Data

Parameter	Value
Power Consumption	150 W (switchable 90/120/150 W)
Luminous Flux	31,500 lm
Luminous Efficacy	210 lm/W
Colour Temperature	4,000 K · 5,000 K · 6,000 K – Please select when ordering.
Colour Rendering (CRI)	Ra ≥ 70
Beam Angle	90°
Protection / Impact Rating	IP65 · IK09
Energy Efficiency Class	C (EU Scale A–G) The EU formula rates directional luminaires (90°) more strictly than omnidirectional sources. ? therefore Class C instead of A, even though the actual system efficiency with 210 lm/W is in the top range.
LED Driver	Philips Xitanium · 0–10 V dimmable
LED Type	SMD 2835
Operating Voltage	AC 200–240 V · 50/60 Hz
Housing Diameter	Φ300 mm
Height	110 mm
Weight	1.88 kg
Lifespan	50,000 hours
Certificates	CE · RoHS

Applications

Recommended Mounting Height: 8–12 m

Industry & Production Manufacturing halls, assembly areas and production floors requiring maximum brightness and reliability during shift operations.	Warehouses & Logistics High-bay racking, picking areas and logistics centres requiring uniform, shadow-free illumination across large floor areas.	Sports Halls & Arenas Sports halls, riding arenas and covered venues requiring uniform, glare-free area illumination.
Petrol Stations & Canopies IP65-rated for covered outdoor areas, carports and petrol station forecourt canopies.	Supermarkets & Trade Large-format retail and exhibition floors with high ceiling clearance.	Workshops & Automotive Automotive workshops and bodyshops where precise colour rendering and high illuminance are critical.

FAQ

Frequently Asked Questions

How many Extreme X1 150 W luminaires do I need for my hall?

As a rule of thumb: at 10 m mounting height and a grid spacing of approximately 5×5 m, the Extreme X1 150 W achieves around 300–500 lux on the floor – standard-compliant per EN 12464 for general work areas. For a customised lighting plan, please contact us.

Which output level is right for my operation?

We recommend HIGH (150 W / 31,500 lm) for high-bay racking and production floors. MID (120 W / 25,200 lm) suits storage and circulation areas. LOW (90 W / 18,900 lm) is ideal for off-peak hours or halls with sufficient daylight. Adjustment is made with a small screwdriver directly on the fixture.

Can the luminaire be dimmed?

Yes – the Philips Xitanium driver supports 0–10 V dimming, making it compatible with building automation systems, presence sensors and daylight-responsive controls.

Is the Extreme X1 suitable for outdoor use?

Thanks to its IP65 rating, the Extreme X1 is suitable for covered outdoor areas (canopies, carports, petrol stations). For unprotected outdoor use with direct rainfall, we recommend a luminaire rated IP66 or higher.

What optional accessories are available?

Optional accessories include a mounting bracket for wall or ceiling installation and a PC reflector to optimise the beam angle. Both are available specifically for the 150 W version.

Package Contents

1× UFO LED High Bay Extreme X1 150 W · 1× Philips Xitanium LED driver · 1× Suspension hook
Optional: Mounting bracket · PC reflector
