Description
Automatic light on movement – with infrared motion sensor

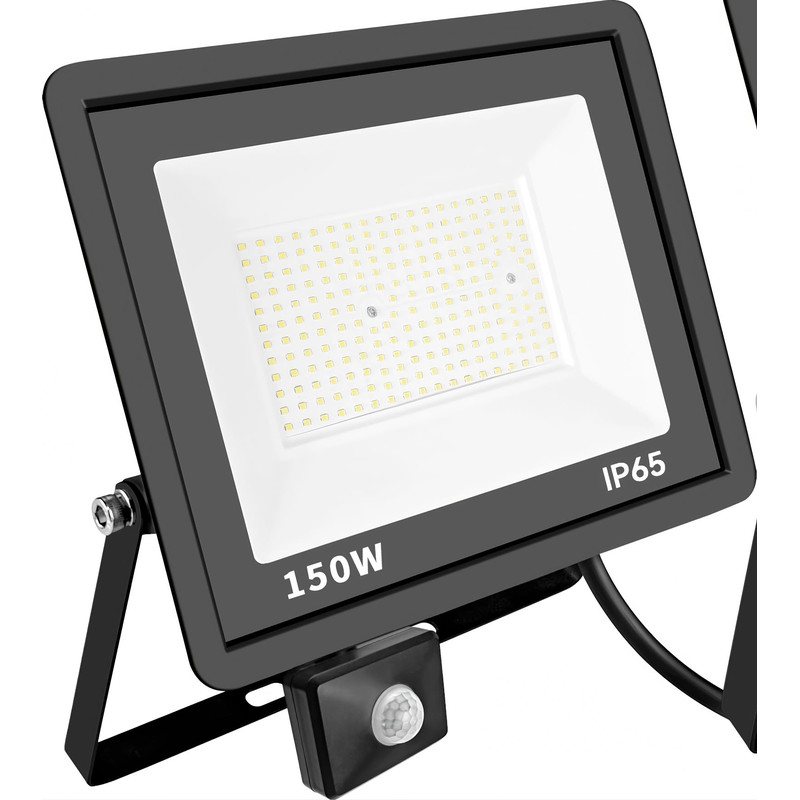

The LED floodlight with built-in infrared motion sensor switches the light on automatically as soon as movement is detected, and off again after an adjustable time – saving energy and providing security and comfort.
Your benefits at a glance
infrared motion sensor Switches on automatically on movement and off after an adjustable time – saving energy and increasing security. |
Rugged & IP66 Die-cast aluminium housing with toughened glass – weatherproof to IP66. |
120° wide coverage Large beam angle for even, wide-area illumination. |
High efficiency Up to 120 lm/W – energy-saving with up to 60% less consumption than conventional floodlights. |
Fully adjustable sensor LUX, TIME and SENS – switching threshold, hold time and range individually adjustable. |
3 light colours Available in warm white (3000 K), neutral white (4000 K) and daylight white (6000 K). |
How the infrared motion sensor works

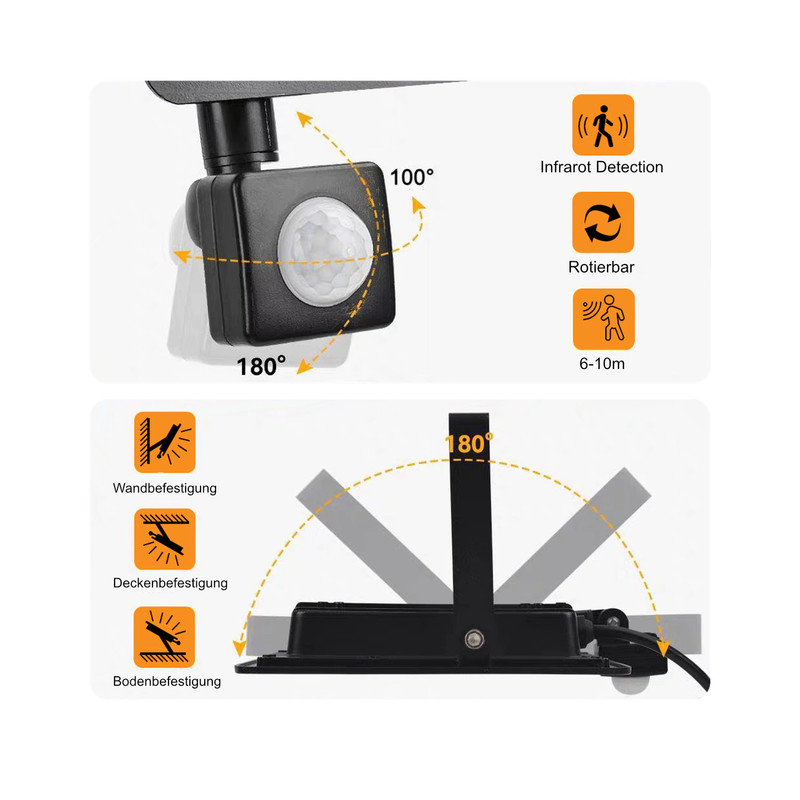

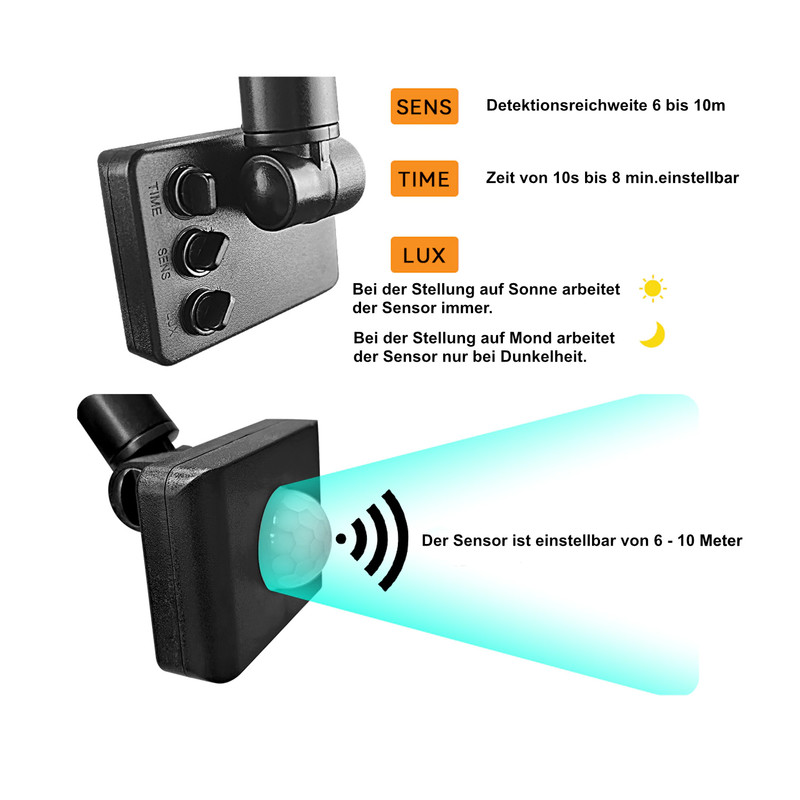

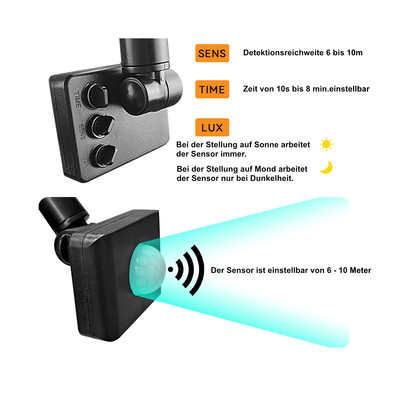

The built-in infrared motion sensor detects people within a 120° angle and switches the floodlight on automatically when movement occurs – after the set time has elapsed it turns off again by itself. Three rotary controls let you fine-tune the sensor: LUX (day/night operation or switching threshold), TIME (hold time from approx. 10 seconds to several minutes) and SENS (sensitivity or range up to approx. 10 m). This way the floodlight only lights up when it is really needed – saving energy and increasing security. A permanent-on mode can also be activated.
Technical Data
| Property | Value |
| Model | D6-150W |
| Power | 150 W |
| Input voltage | AC 200–240 V, 50/60 Hz |
| Luminous flux | 18000 lm |
| Luminous efficacy | 120 lm/W |
| Energy efficiency class | E (EU 2019/2015) |
| Light colour | 3000 / 4000 / 6000 K (depending on version) |
| Colour rendering (CRI) | ≥ 80 (Ra) |
| Beam angle | 120° |
| Motion sensor | infrared, 120°, range up to 10 m (adjustable) |
| Hold time | approx. 10 s to 8 min (adjustable) |
| Twilight threshold | 2–2000 lux (adjustable) |
| Protection rating | IP66 |
| Electrical class | I |
| LED type | SMD 2835 (216 pcs) |
| Power factor | ≥ 0.92 |
| Housing | die-cast aluminium, toughened glass |

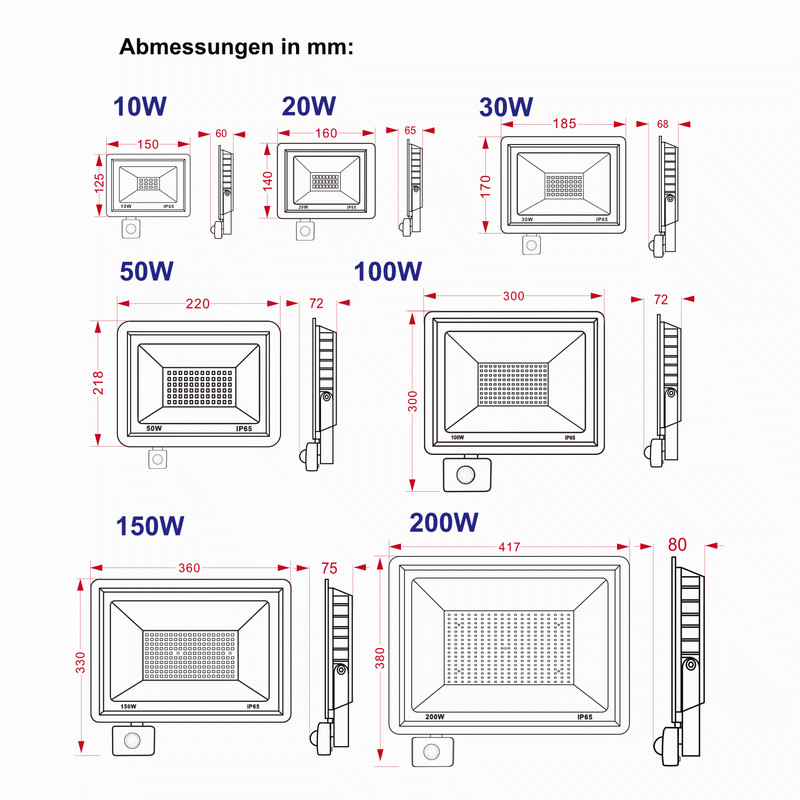

| Dimensions (W × D × H) | 360 × 75 × 330 mm |
| Weight | 1.25 kg |
| Operating temperature | -20 °C to +55 °C |
| Lifespan | 50,000 h |
| Certification | CE, RoHS |
Mounting & connection
The floodlight is connected to 230 V (connection: L = brown, N = blue, sensor output L’ = red). It is mounted via the adjustable bracket on a wall or ceiling; an installation height of 1–5 m is optimal for the sensor. We recommend that installation and connection be carried out only by a qualified electrician with the supply disconnected.
Applications
With 150 W the floodlight illuminates large areas, car parks, sports grounds, storage yards and industrial sites. Its high brightness creates clear visibility and greater security even on expansive areas. The infrared motion sensor activates the light automatically on movement, keeping running costs low. Several floodlights can be combined into continuous, professional outdoor lighting.
Why this floodlight pays off
On large areas in particular, the built-in motion sensor pays off especially quickly: instead of burning all night, the floodlight only switches on when needed – saving considerable energy costs over the year. With high light output and a 120° beam angle it floods large yards, car parks and business premises with bright, secure light and reliably deters intruders. The die-cast aluminium housing with toughened glass is protected to IP66 and built for tough, continuous outdoor use. High efficiency of up to 120 lm/W and a long 50,000-hour lifespan keep running costs permanently low. This combines security, comfort and economy in one durable product.
