Description
Automatic light on movement – with infrared motion sensor
The LED floodlight with built-in infrared motion sensor switches the light on automatically as soon as movement is detected, and off again after an adjustable time – saving energy and providing security and comfort.
Your benefits at a glance
infrared motion sensor Switches on automatically on movement and off after an adjustable time – saving energy and increasing security. |
Rugged & IP66 Die-cast aluminium housing with toughened glass – weatherproof to IP66. |
120° wide coverage Large beam angle for even, wide-area illumination. |
High efficiency Up to 100 lm/W – energy-saving with up to 60% less consumption than conventional floodlights. |
Fully adjustable sensor LUX, TIME and SENS – switching threshold, hold time and range individually adjustable. |
3 light colours Available in warm white (3000 K), neutral white (4000 K) and daylight white (6000 K). |
How the infrared motion sensor works

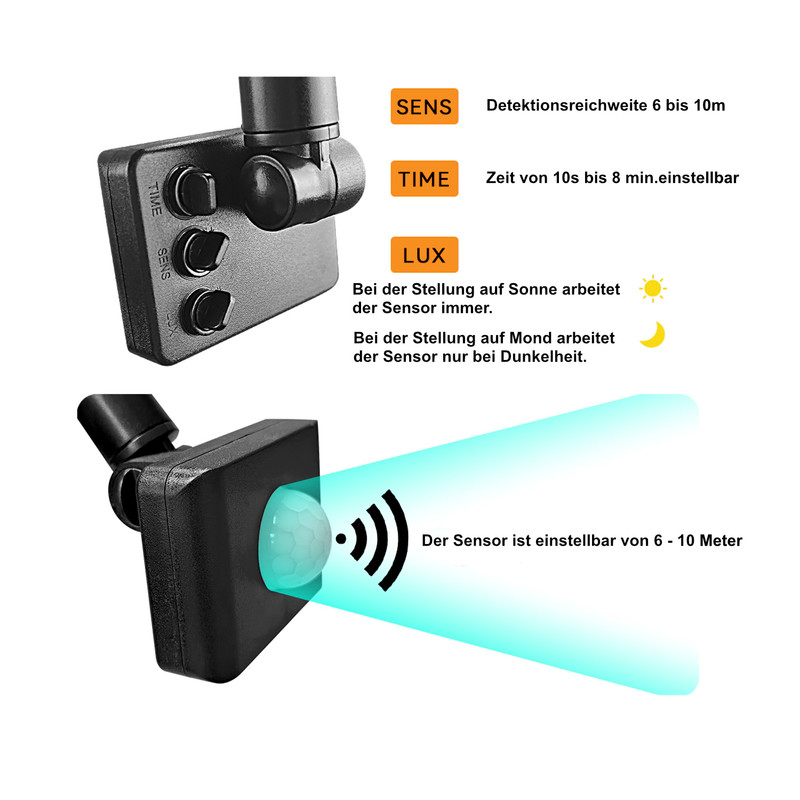

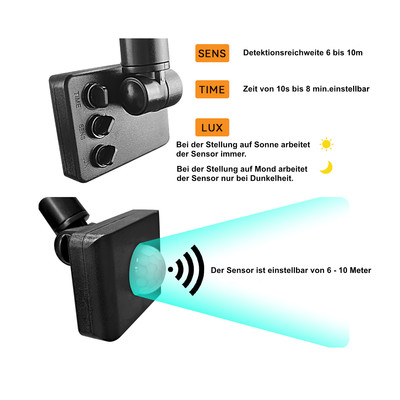

The built-in infrared motion sensor detects people within a 120° angle and switches the floodlight on automatically when movement occurs – after the set time has elapsed it turns off again by itself. Three rotary controls let you fine-tune the sensor: LUX (day/night operation or switching threshold), TIME (hold time from approx. 10 seconds to several minutes) and SENS (sensitivity or range up to approx. 10 m). This way the floodlight only lights up when it is really needed – saving energy and increasing security. A permanent-on mode can also be activated.
Technical Data
| Property | Value |
| Model | D6-50W |
| Power | 50 W |
| Input voltage | AC 200–240 V, 50/60 Hz |
| Luminous flux | 5000 lm |
| Luminous efficacy | 100 lm/W |
| Energy efficiency class | F (EU 2019/2015) |
| Light colour | 3000 / 4000 / 6000 K (depending on version) |
| Colour rendering (CRI) | ≥ 80 (Ra) |
| Beam angle | 120° |
| Motion sensor | infrared, 120°, range up to 10 m (adjustable) |
| Hold time | approx. 10 s to 8 min (adjustable) |
| Twilight threshold | 2–2000 lux (adjustable) |
| Protection rating | IP66 |
| Electrical class | I |
| LED type | SMD 2835 (96 pcs) |
| Power factor | ≥ 0.92 |
| Housing | die-cast aluminium, toughened glass |

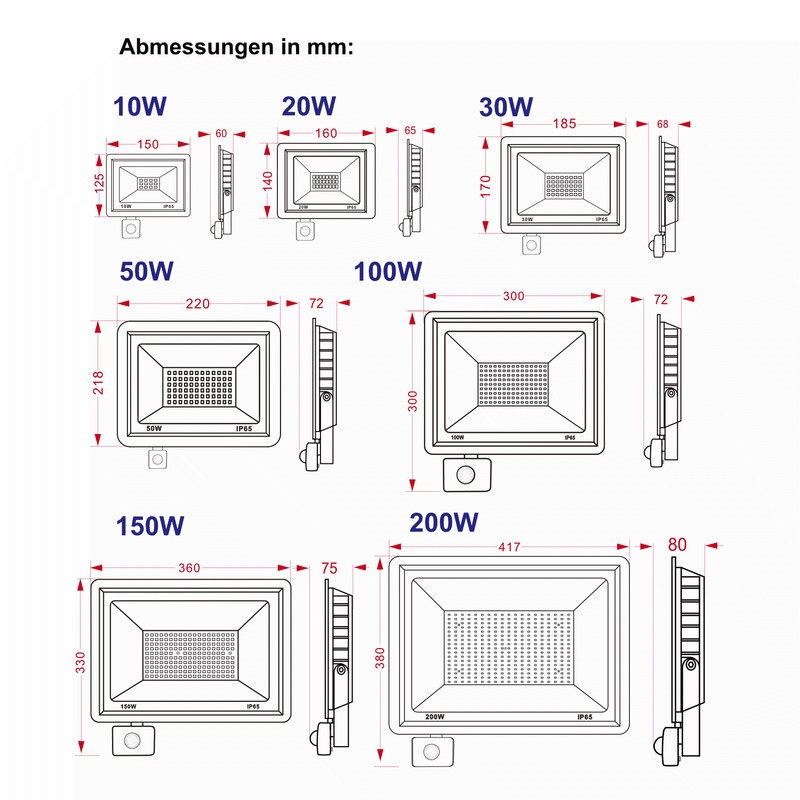

| Dimensions (W × D × H) | 220 × 72 × 218 mm |
| Weight | 0.49 kg |
| Operating temperature | -20 °C to +55 °C |
| Lifespan | 50,000 h |
| Certification | CE, RoHS |
Mounting & connection
The floodlight is connected to 230 V (connection: L = brown, N = blue, sensor output L’ = red). It is mounted via the adjustable bracket on a wall or ceiling; an installation height of 1–4 m is optimal for the sensor. We recommend that installation and connection be carried out only by a qualified electrician with the supply disconnected.
Applications
With 50 W the floodlight delivers powerful light for yards, driveways, façades, storage areas and commercial entrances. It is suited wherever larger outdoor areas need to be lit safely and brightly. The infrared motion sensor switches the light automatically so it only burns when someone is present – saving energy and increasing security. With its rugged IP66 housing it is well equipped for permanent outdoor use.
Why this floodlight pays off
With its infrared motion sensor, this floodlight pays off from day one: the light only comes on when someone is actually there – noticeably cutting electricity costs while protecting the environment. At the same time it adds security, as suddenly illuminated light reliably deters unwelcome visitors. You will never come home in the dark again, never have to search for a switch and always have your hands free. The rugged aluminium housing is weatherproof to IP66 and withstands wind and weather for many years. Thanks to easy installation and a long 50,000-hour lifespan, the floodlight is an investment that quickly pays for itself.
