Description

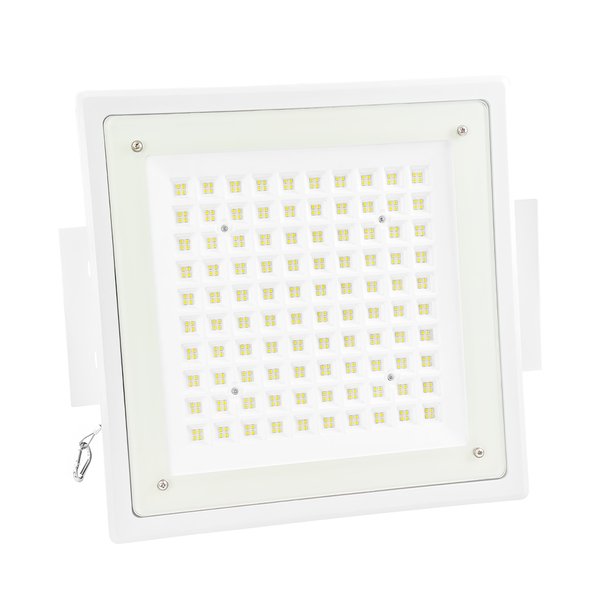

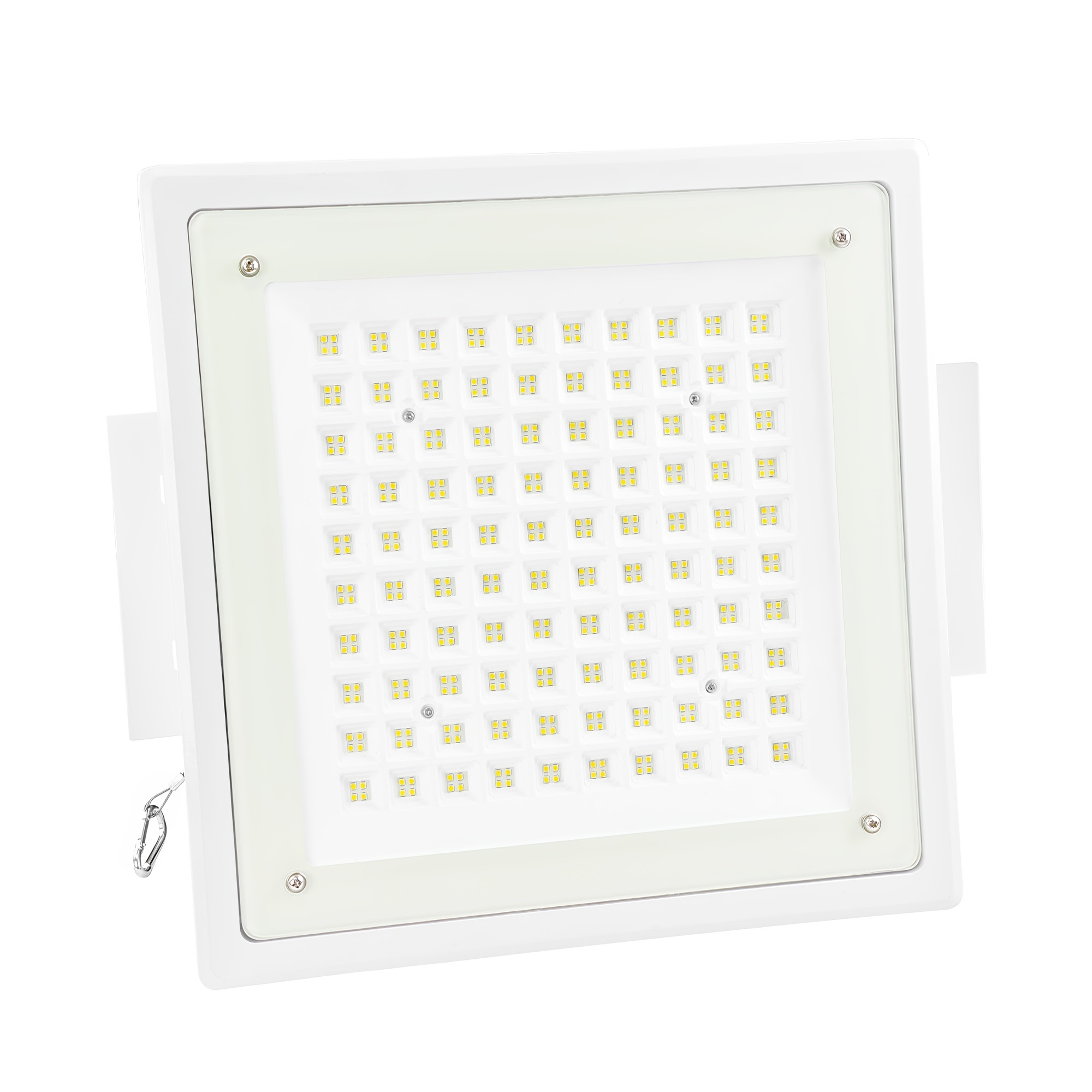

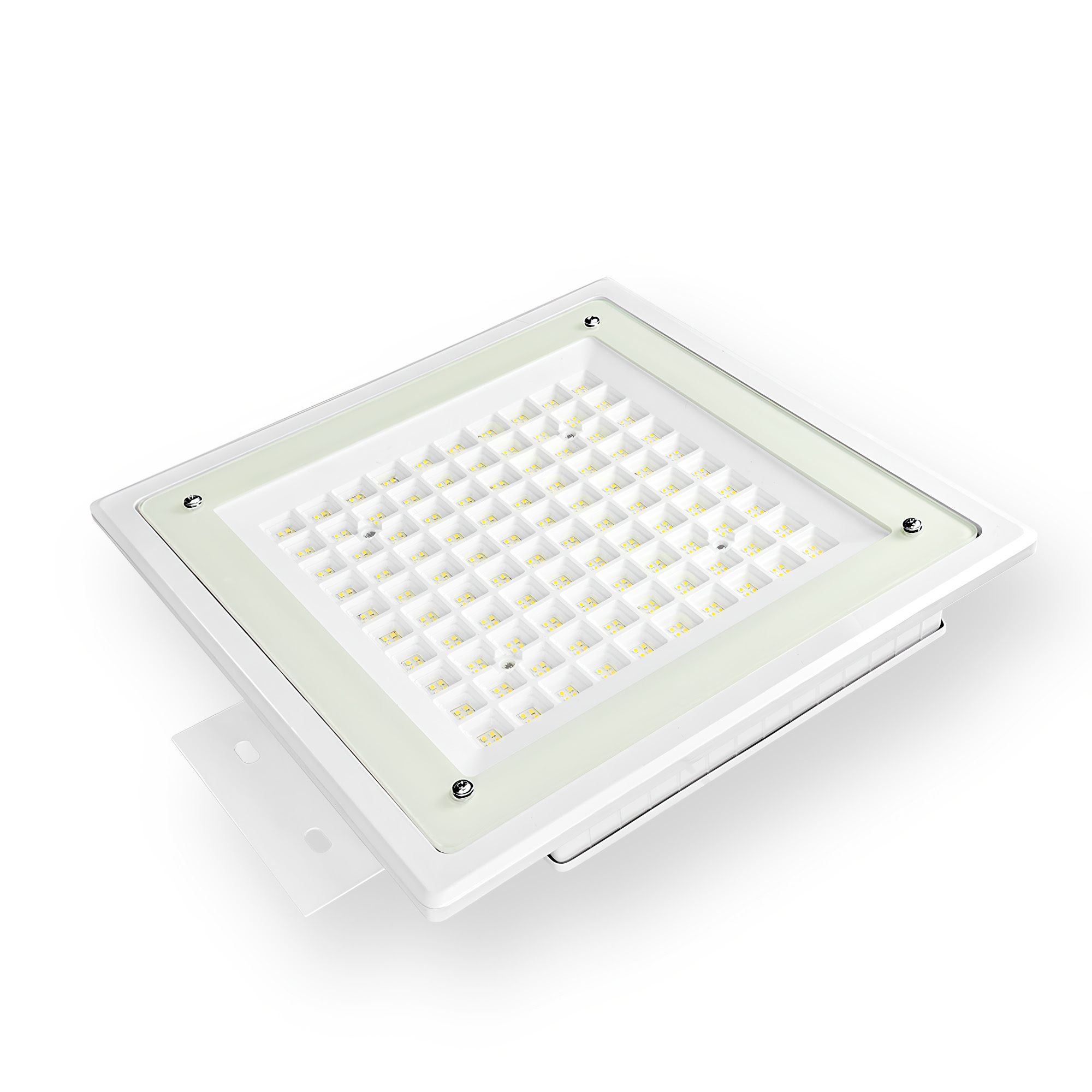

LED Canopy Light 200 W 4000 K – 34,000 lm for Petrol Stations and Car Parks
4000 K neutral white · 170 lm/W · 100° beam · IP65 · IK08 · 0–10 V dimmable
The LED canopy light is a flat ceiling luminaire for covered outdoor areas. With 34,000 lumens at 200 watts it delivers enough light to illuminate large areas beneath a canopy evenly. Its slim build of just 10.5 centimetres is needed where little space remains between ceiling and vehicles – classically at petrol stations, but also in car parks, at loading bays and in underpasses.

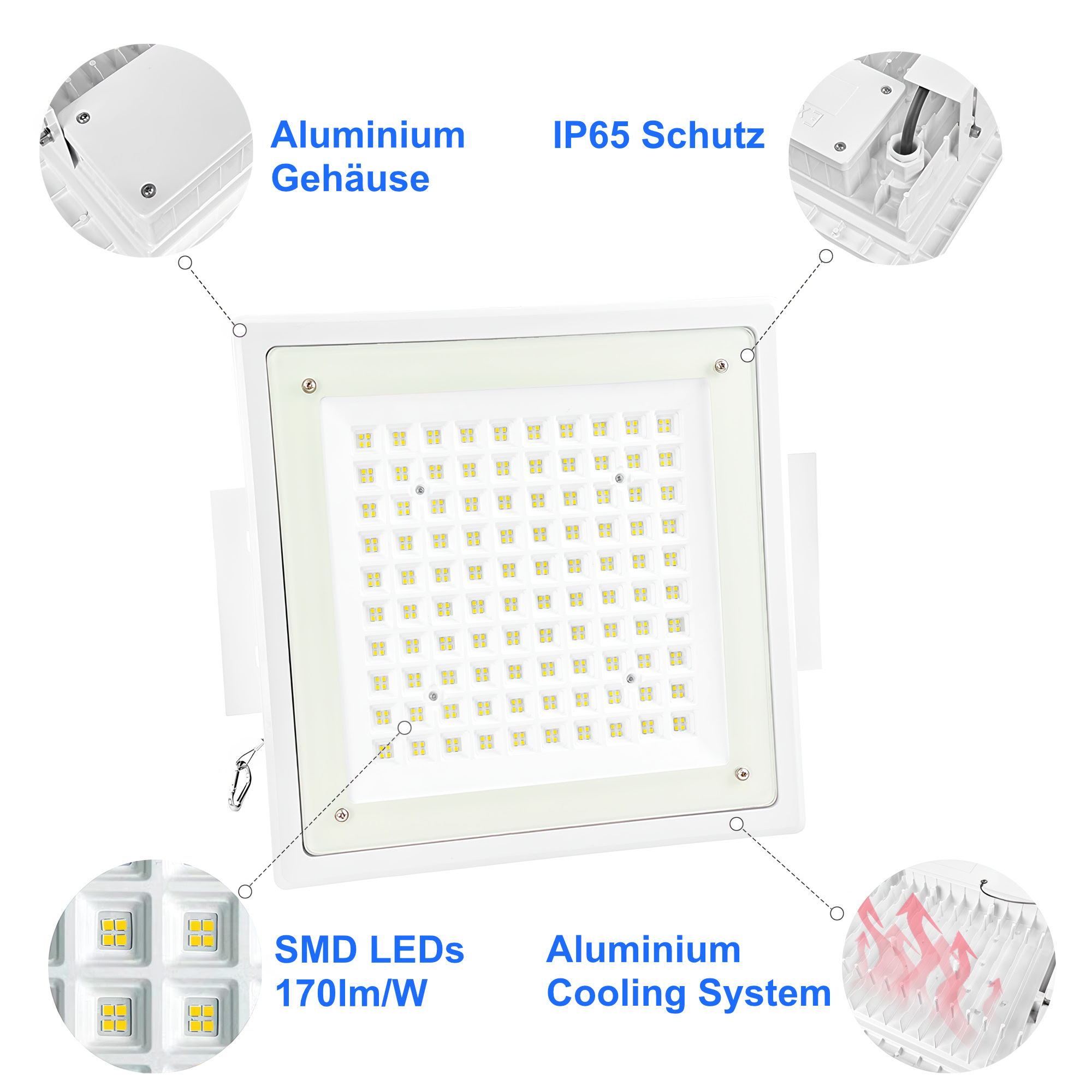

Key benefits at a glance
Very high efficacy 170 lm/W – 34,000 lm from just 200 W connected load. | Slim design Only 105 mm high, suitable for recessed and surface mounting. |
Weatherproof IP65 against dust and water jets, IK08 against impact. | Dimmable 0–10 V interface for demand-based dimming. |
Wide temperature range Operation from −30 °C to +55 °C without loss of output. | Instant full brightness No warm-up as with HQI – 100 % light immediately. |
Features in detail
- 400 SMD 2835 LED chips for even illumination
- Brand driver by Sosen, 0–10 V dimmable
- 100° beam angle for wide, area-filling illumination
- Die-cast aluminium housing with cooling fins, white powder coated
- IP65 protection rating and IK08 impact resistance for outdoor use
- Flicker-free operation – also suitable for video-monitored areas
- Safety cable included, UV-resistant housing
Why a canopy light and not a high bay?
Conditions beneath a canopy differ from those in a hall. Ceiling height is low while vehicles pass closely underneath. A suspended high bay fitting would be in the way here and would also dazzle, as it sits in the drivers' field of view. The canopy light is therefore built flat and mounted directly to the underside of the canopy or recessed into it. The wide 100 degree beam ensures the area is lit evenly despite the low mounting height, with no dark zones appearing between fittings.
Economics: what the switch delivers
This luminaire replaces conventional HID or HQI fixtures of 400 to 500 watts with equal or better light output. In continuous night operation the difference adds up quickly: where 500 watts used to run, it is now 200 watts – with better light quality at the same time. Added to this is the end of lamp replacement, which HQI installations require every few years and which needs a lifting platform each time under a canopy. With a service life of 50,000 hours and more than 200,000 switching cycles, the LED luminaire works maintenance-free for many years.
Ruggedly built for outdoor use
The housing is made of die-cast aluminium with integrally formed cooling fins. These dissipate heat passively, so no fan is required – one less component that can fail. The IP65 rating means complete protection against dust and against water jets from all directions, which also qualifies the luminaire for jet cleaning. IK08 stands for high impact resistance as required in publicly accessible spaces. The approved temperature range from −30 °C to +55 °C covers both frosty nights and heat build-up beneath the canopy.
Colour temperature 4000 K – neutral white
At 4000 kelvin the luminaire delivers a neutral white light that looks neither yellowish nor cold. This colour temperature has become established at petrol stations and in car parks because it renders contrast well and thus aids orientation. Signage, road markings and people are clearly visible without the light becoming unpleasantly harsh. For camera recordings, neutral white flicker-free light is also an advantage as it reproduces colours naturally.
Technical data
| Power | 200 W |
| Luminous flux | 34,000 lm |
| Efficacy | 170 lm/W |
| Colour temperature | 4000 K (neutral white) |
| Beam angle | 100° (wide beam) |
| LED chips | 400 × SMD 2835 |
| Driver | Sosen, 0–10 V dimmable |
| Power factor | ≥ 0.95 |
| Flicker | flicker-free |
| Service life | 50,000 h |
| Switching cycles | > 200,000 |
| Voltage | AC 100–240 V, 50/60 Hz |
| Protection rating | IP65 |
| Impact resistance | IK08 |
| Material | die-cast aluminium, white powder coated, UV-resistant |

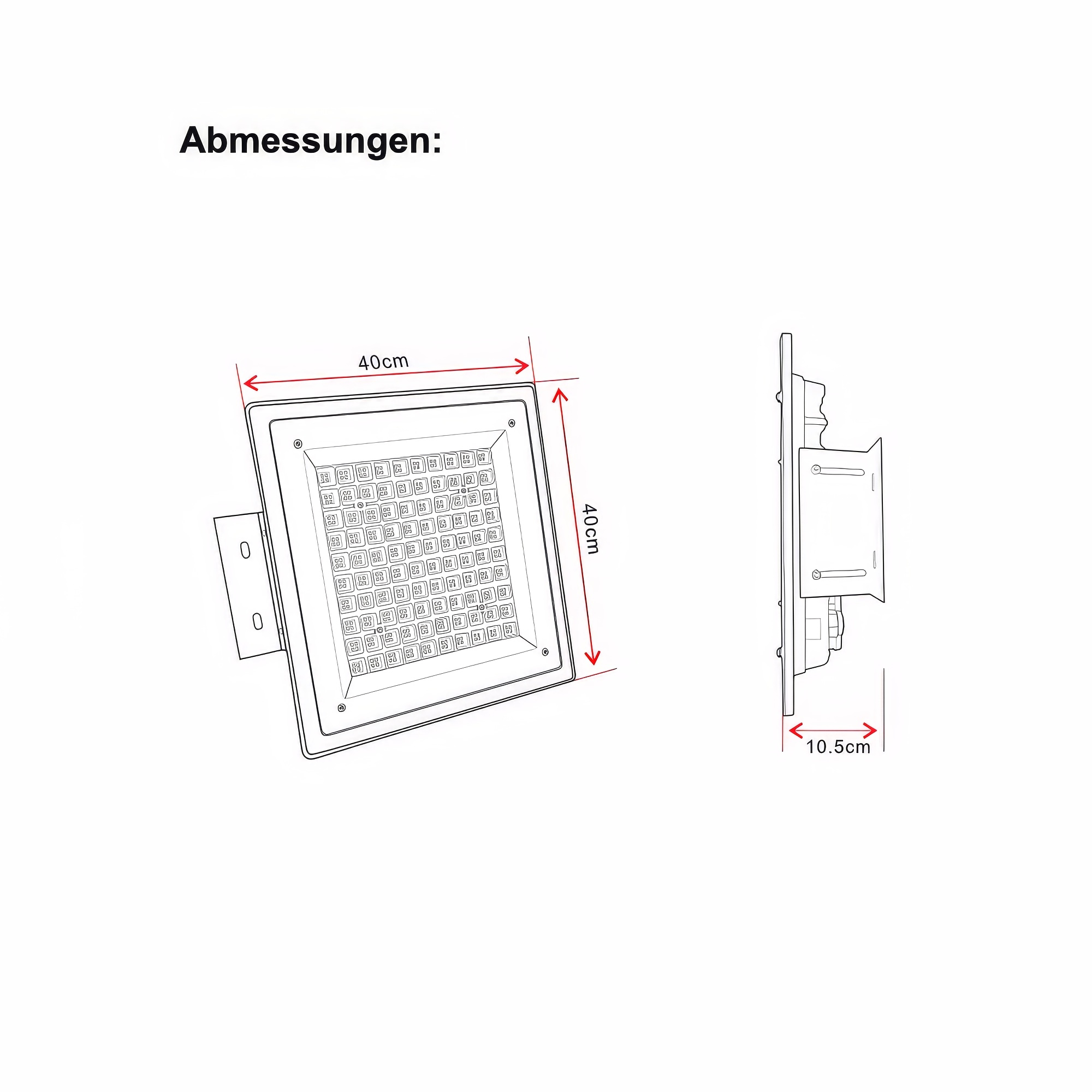

| Dimensions | 400 × 400 × 105 mm |
| Weight | 5.0 kg |
| Ambient temperature | −30 °C to +55 °C |
| Mounting | recessed or surface, safety cable included |
| Energy efficiency class | C (EU scale A–G, EU 2019/2015) |
Applications
Typical locations are petrol stations and their canopies, car parks and underground garages, loading bays and delivery areas, underpasses and covered drive-throughs. The luminaire is also used in industrial halls with low ceilings and at covered sports facilities. Wherever little installation height is available yet plenty of light is needed, the flat canopy design is the fitting solution.
Scope of delivery
- 1× LED canopy light 200 W, 4000 K
- Mounting accessories and safety cable
- Installation instructions
