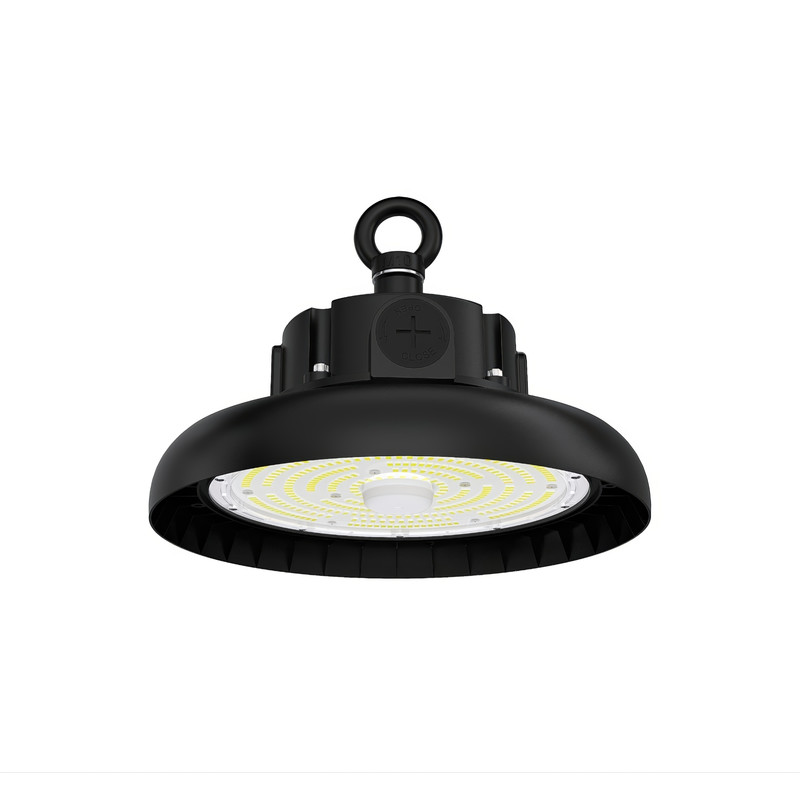

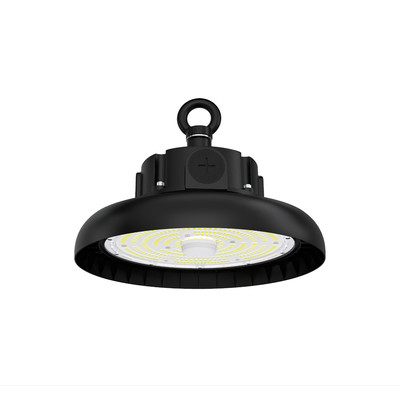

UFO LED High Bay Extreme X1 100W 4000K | 210 lm/W

LED high-bay light Extreme X1 100W 210 lm 90° Xitanium NT 4000K

Description

UFO LED High Bay Extreme X1 – 100 W | 210 lm/W | 4000 K Neutral White

UFO High Bay Extreme X1 – 100 W, 21,000 lm, 4000 K Neutral White.

210 lm/W

Efficiency

21,000 lm

Luminous Flux

100 W

Wattage

50,000 h

Lifespan

IP65

Protection

4000 K · Neutral White

Neutral White

Targeted hall illumination in neutral white: the Extreme X1 100 W in 4000 K delivers 21,000 lumens in neutral white – ideal for offices, assembly halls and workshops where colour-neutral vision is essential. 210 lm/W efficacy, Philips Xitanium driver, three output levels via code switch.

Brand Quality

Philips Xitanium LED Driver – Built for Industrial Reliability

The Philips Xitanium is a professional driver series engineered for demanding industrial applications – designed for continuous operation under extreme conditions. Built-in protection against short circuit, overcurrent, overvoltage and overtemperature, with a power factor of ≥0.95 and efficiency of ≥94%. Fully IP65 encapsulated and 0–10 V dimmable.

Power Factor ≥ 0.95 Efficiency ≥ 94% 0–10 V Dimming IP65 Encapsulated 4x Protection Built-in

Output Control

Three Output Levels via Code Switch

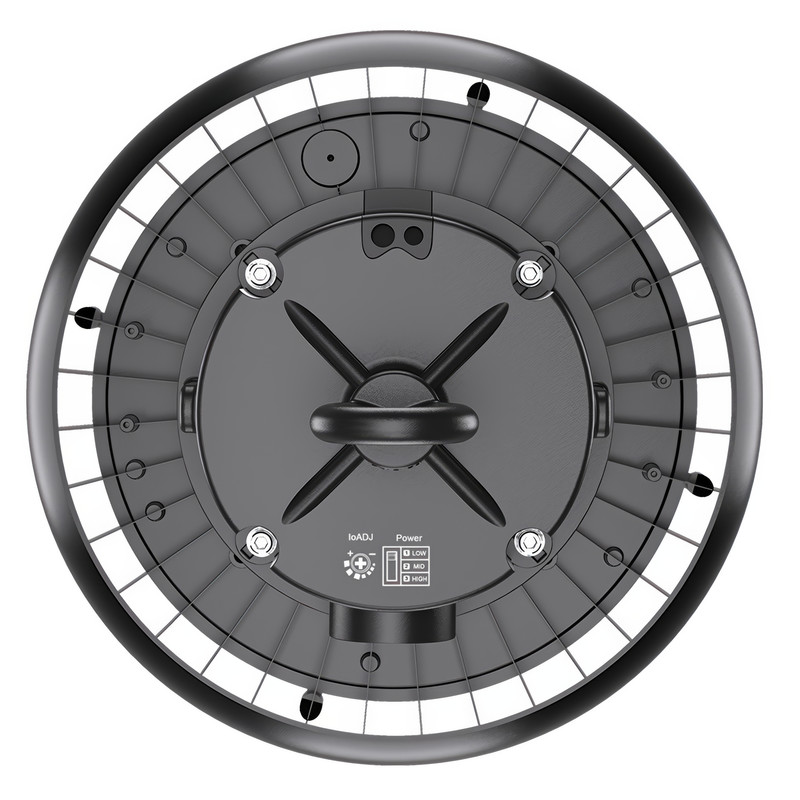

The integrated code switch on the back of the fixture allows step-by-step adjustment of the light output – no external controls required.

Model	Default	? LOW	? MID	? HIGH
100 W Model	100 W	70 W	100 W	130 W

Your Benefits

Built for Industrial Use

lm/W

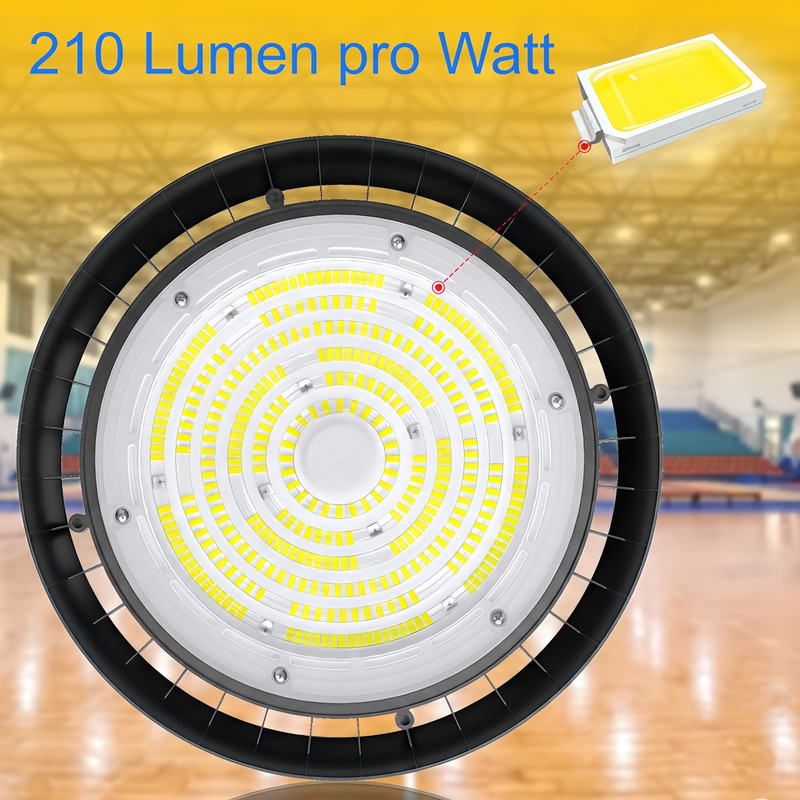

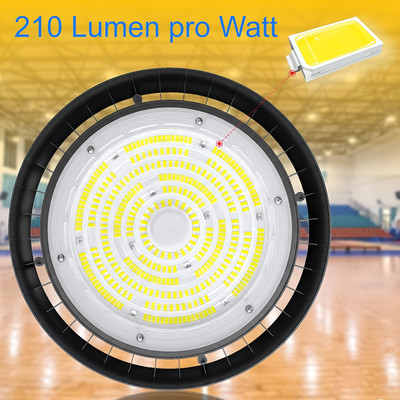

Record Efficiency – 210 lm/W

At 210 lumens per watt, the Extreme X1 ranks among the most efficient high bay luminaires available. The 200 W model produces 42,000 lumens – equivalent to more than 20 conventional 150 W halogen floodlights.

SMD 2835 High-Efficiency LEDs

IP65

IP65 & IK09 – Built Tough

Dust and water-protected to IP65, impact-resistant to IK09 – the Extreme X1 performs reliably in production halls, warehouses, workshops and covered outdoor areas alike.

DIM

0–10 V Dimming

Full light control via 0–10 V – compatible with building automation, presence sensors and daylight-responsive controls. Ideal for facilities with an energy management system.

50Th

50,000 h Lifespan

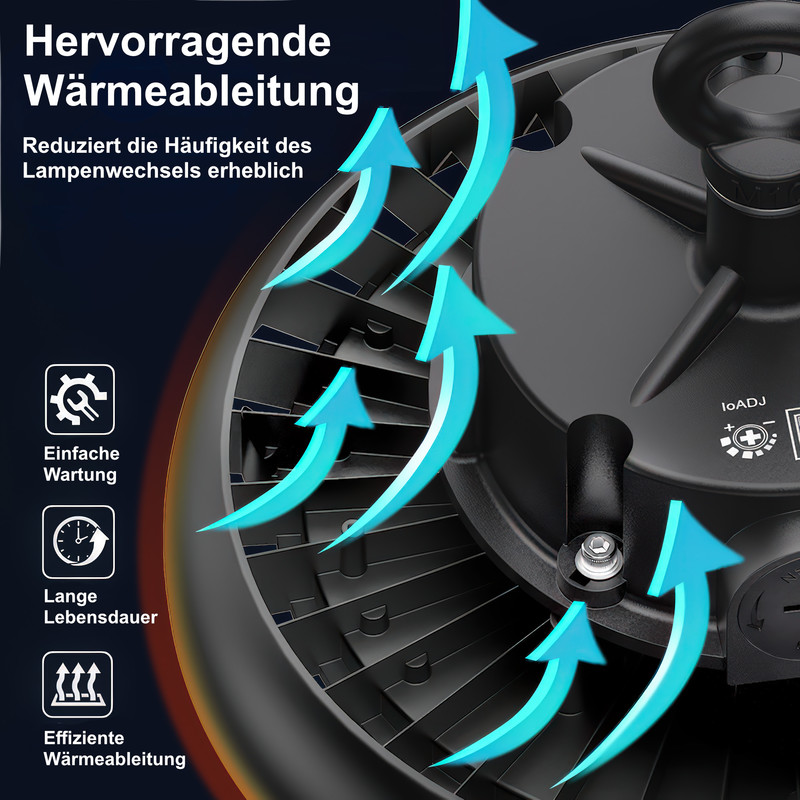

The combination of Philips Xitanium driver, high-quality SMD 2835 chips and optimised air convection ensures a rated lifespan of 50,000 hours – 17 years at 8 h/day.

CRI

CRI ≥70 – Clear Vision at Work

A colour rendering index above 70 enables reliable material recognition, safe machine operation and increased alertness during shift work.

90°

90° Beam Angle

Precise, deep-throw illumination for high-bay racking and tall industrial halls – the 90° beam angle concentrates light directly onto the work area.

Optional: PC reflector available

Specifications

Technical Data

Parameter	Value
Power Consumption	100 W (switchable 70/100/130 W)
Luminous Flux	21,000 lm
Luminous Efficacy	210 lm/W
Colour Temperature	4,000 K (Neutral White)
Colour Rendering (CRI)	Ra ≥ 70
Beam Angle	90°
Protection / Impact Rating	IP65 · IK09
Energy Efficiency Class	C (EU Scale A–G) The EU formula rates directional luminaires (90°) more strictly than omnidirectional sources. — therefore Class C instead of A, even though the actual system efficiency with 210 lm/W is in the top range.
LED Driver	Philips Xitanium · 0–10 V dimmable
LED Type	SMD 2835
Operating Voltage	AC 200–240 V · 50/60 Hz
Housing Diameter	Φ255 mm
Height	110 mm
Weight	1.53 kg
Lifespan	50,000 hours
Certificates	CE · RoHS

Applications

Recommended Mounting Height: 5–8 m

Industry & Production Manufacturing halls, assembly areas and production floors requiring maximum brightness and reliability during shift operations.	Warehouses & Logistics High-bay racking, picking areas and logistics centres requiring uniform, shadow-free illumination across large floor areas.	Sports Halls & Arenas Sports halls, riding arenas and covered venues requiring uniform, glare-free area illumination.
Petrol Stations & Canopies IP65-rated for covered outdoor areas, carports and petrol station forecourt canopies.	Supermarkets & Trade Large-format retail and exhibition floors with high ceiling clearance.	Workshops & Automotive Automotive workshops and bodyshops where precise colour rendering and high illuminance are critical.

FAQ

Frequently Asked Questions

What mounting height is recommended for the Extreme X1 100 W?

The Extreme X1 100 W is designed for mounting heights of 5–8 m, providing uniform, standard-compliant illumination in accordance with EN 12464.

How does the code switch work?

On the back of the fixture there is a code switch with three settings: LOW (70 W), MID (100 W) and HIGH (130 W). Use a small screwdriver to select the desired level directly on the luminaire – no external controls required. Always adjust with the luminaire switched off.

Can the luminaire be dimmed?

Yes – the Philips Xitanium driver supports 0–10 V dimming, making it compatible with building automation systems, presence sensors and daylight-responsive controls.

Is the Extreme X1 suitable for outdoor use?

Thanks to its IP65 rating, the Extreme X1 is suitable for covered outdoor areas (canopies, carports, petrol stations). For unprotected outdoor use with direct rainfall, we recommend a luminaire rated IP66 or higher.

What optional accessories are available?

Optional accessories include a mounting bracket for wall or ceiling installation and a PC reflector to optimise the beam angle. Both are available specifically for the 100 W version.

Package Contents

1× UFO LED High Bay Extreme X1 100 W · 1× Philips Xitanium LED driver · 1× Suspension hook
Optional: Mounting bracket · PC reflector
